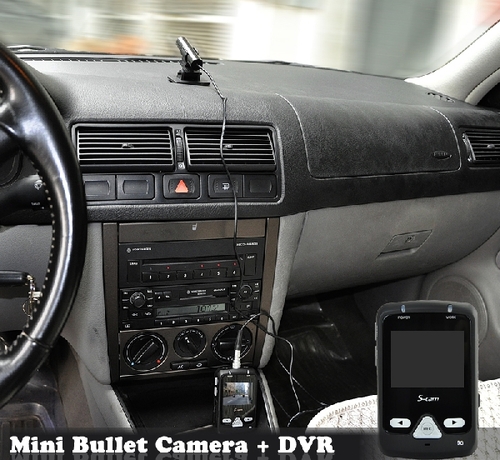

Portable digital video recorder (DVR) with wired mini bullet camera. The DV36 Portable DVR + mini video camera is comprised of a pocket-sized DVR, mini bullet camera, and multiple attachment accessories so you can use this as a desktop interview video camera, biking and hiking camera, or life blogging camcorder.

Designed with simplicity and easy to use functionality in mind, this high quality Portable Digital Video Recorder can be used at home, the office, or taken everywhere you go and used for special occasions.

Unlike other Portable DVRs that only have a limited memory, the DV36 has a massive 8GB of internal memory, as well as an SD card slot that can support up to 32 GB of SD/SDHC external storage, so you can shoot many hours of high quality video.

With a high quality 1/3" colour Sony HAD CCD and a pocket sized digital video recorder (DVR) with instant view screen, you can do true point and shoot recording.

• High-resolution Recording 720 x 576 pixels at 30 FPS
• Crystal clear 2" LCD 920 x 240 pixel Screen
• Huge 8 GB internal memory and support for SD/SDHC card up to 32 GB (SD card not supplied)
• Audio possible with built-in or external microphone
• Compact and portable
• Handlebar and table/wall mount included

Manufacturer Specifications

• Primary function: Portable High Resolution Digital Video Record System with 2 Inch LCD Screen
• Possible Mounts: Tube & Helmet
• S/N ratio: 52dB
• Standard operating voltage: 3.3V
• Media format:
  - Video: AVI
  - Photo:JPEG
  - Music:MP3
• Recording Size: 44 MB / minute
• Manufacturer ref: E1ZZ7K4PDFGO

Mini Camera Attachment

• Image sensor: 1/3" Sony HAD CCD
• Minimum illumination: 0.5 lux
• Power supply: DC 5V, 150mAh
• Dimensions:Φ18 mm x (L) 75 mm
• Focus range: 2.5 m
• Wide angle lens: 72 degrees
• Connector: concentric 4 pin jack
• Cable length:1.4m
• TV System: PAL/NTSC

DVR Unit

• Dimensions: W 59 x L 93 x H 24 (mm)
• Screen: 2.0" TFT LCD 920 x 240 Pixels
• Connections :
  - High-Speed USB2.0
  - AV in
  - AV out
  - Concentric 4pin
  - DC Power
• Build in Memory: 8 GB
• Storage: SD/SDHC card up to 32 GB (not supplied)
• Mic and Speaker: Yes
• Recording Format: AVI
• Battery Life: up to 3 hours
• Battery: 1800mAh Li-ion Rechargable Battery

DVR Setup Menu:

• Storage: Nand Flash, MSCD
• FPS set: 15, 20, 25,30 fps
• Cycle video: on / off
• Video recording time (manual mode only): 10, 20, 30 minutes
• Time stamp: Open / Close
• Set Time and Date
• TV out: LCD, PAL, NTSC
• Format devices: Nand Flash, MSDC
• Language : English / Chinese

Product Notes

• It has built-in microphone and speaker, but you can also connect an external speaker.
• The mini camera is small enough to be used as a spy camera or casting couch camera. It can easily be disguised and hidden.
• Variable frame rate of up to 30 FPS.
• Works well under low light condition with 0.5 Lux minimum illumination.
• Warning: Please do not charge the main DVR unit and record with the camera at the same time. Please charge the unit to full battery then use it afterwards.

Package Contents

• Mini bullet camera
• DVR main unit
• AV in cable
• AV out cable
• USB cable
• DVR holder with clipper
• Mount assembly
• Power Adapter
• User Manual
• Software CD
